Commercial Water Purification System can effectively remove majority of organics, harmful substances, bacteria, particulates etc.
Water Purification Plant is widely used in water treatment, purification for tap water, well water, underground water, borehole water, brackish water and seawater, pure water and ultra-pure water production, apply in power stations, electronic industries, electroplating industry, medicine manufactories, hotel, communities, villas, and medical treatment, cosmetic products, drinking bottled water factories, sachet pouch water, workshops, beverage factories, hospitals, edible ice making factories. It is a key equipment for pure water plant.
OUGE provides
250lph Ro Industrial Water Filtration Membrane Purifier Reverse Osmosis Plant System that are tailored to the end-user application. These

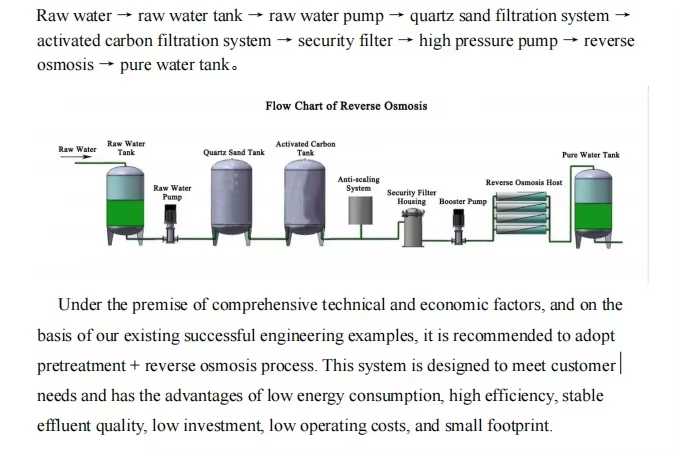

Ro Water Purification System Industrial Water Filter Water Purifier Machine include feed pumps,pre-treatment as required by end-user water quality analysis reports, the RO Process, and finally all post-treatment including post-filtration and Ultra Violet to ensure the best water quality at the point of use. The Commercial Water Packaged Reverse Osmosis Purification RO Machine is delivered completely constructed, tested, and sanitized. After connecting the input and output water pipes, these systems are ready to go with the touch of a button and minimal user participation. Once installed, these systems require just minimal utility connections.
| Brand Name |
oem/odm |
| Productivity |
500L/Hour |
| Product name |
RO System |
| Application |
Drinking Water, Bottled Water |
| Type |
Pure Water Treatment System |
| Keywords |
RO Water Filtration |
| Filter tank |
Fiber Glass Reinforced |
| Certification |
CE Certification |
| Top Control Valve |
Automotive |
| Processing |
Pre-treatment System+ Ro System |
| Pre-treatment |
Sand+carbon+water softener+Security filter+RO Supply Ability |
| Product Name |
Specifications |
QTY |
| Raw Water Pump |
CHL2-30 380v |
1 PC |
| Mechanical Filter |
FRP 250X1450 |
1 PC |
| Water Distributor |
3/4 Inch Water Distributor |
1 PC |
| Quartz Sand |
100KG |
1 Pack |
| ManualValve |
F56E |
1 PC |
| Pressure Gauge |
0.6MPa |
1 PC |
| Pipe Valve |
UPVC Material |
1 Batch |
| Activated Carbon Filter |
FRP 250X1450 |
1 PC |
| Water Distributor |
3/4 Inch Water Distributor |
1 PC |
| Coconut Shell Charcoal |
25KG |
1 Pack |
| Manual Valve |
F56E |
1 PC |
| Pressure Gauge |
0.6MPa |
1 PC |
| Pipe Valve |
UPVC Material |
1 Batch |
| Cartridge Filter |
3 core 10 inch |
1 Set |
| PP Filter |
PP 5um×10" |
3 PCS |
| Reverse Osmosis Frame |
SS Material |
1 Set |
| Electric Control Box |
Automatic control |
1 Set |
| High-pressure Pump |
CDL2-9 380v |
1 Set |
| SS Membrane Housing |
4040 |
1 PC |
| Reverse Osmosis Membrane |
ULP-4040 |
1 PC |
| Flow Meter |
5GPM |
2 PCS |
| Pressure Gauge |
0-2.5Mpa |
2 PCS |
| Pressure Gauge |
0-0.6Mpa |
1 PC |
| Low Voltage Switch |
P06 |
1 PC |
| Conductivity Meter |
CM-230 |
1 Set |
| Electromagnetic Valve |
PU225-04A |
2 PCS |
| Float Switch |
|
2 PCS |
| Pipe Valve |
UPVC Material |
1 Batch |
| Pure Water Tank |
1000 L |
1 PC |
Packaged Reverse System Water Treatment Plants are built with tried-and-true components and installed on a strong powder-coated or stainless steel SUS304 316 metal frame. Many design features learnt through years of expertise are included into our water filtering systems. Our process and fluid design maximizes membrane life and reduces membrane fouling.
* Conservatively engineered for reliable, long term performance
* Factory tested to ensure trouble-free operation
