Customized ex-factory price stainless steel bag filter housing for water treatment system

Stainless steel bag filter housing, used in water treatment system, bag filter BFM.
Description
Factory price stainless steel body bag filter housing, used in water filtration system, can be customized

 Specifications:

Standard GB, American Standard, German standard, Japanese standard, customized; single bag, parallel bag, multi-bag, cartridge
Models S, T series, PBF polypropylene containers etc.,
Single bag flow 6-1088T/H
Working pressure 0.05Mpa-0.6Mpa
Material 304.316L
 Working temperature 5-40(Special temperature can be customized)
 Filtering accuracy 1um-800um
 Operation mode Manual or automatic control cylinder
High-strength support basket by uniform pore size of high-strength stainless steel mesh manufacture of 3.5mm;
Inlet and outlet 1-14 inch or customized
Inlet and outlet Location Side into and side out, side into and bottom out,top into and bottom out, top into and side out or customized
Interface Type flange, screw thread or customized
Bag model and non-calibration
Filtration precision 1-800um (microns) relative or absolute precision
Seal ring material categories general nitrile rubber, Teflon, nylon, Te Fulong acid such as high temperature and high-performance specialty materials
Type of bag pure polypropylene, polyester, wool, viscose fiber, aromatic polyamide, Teflon, nylon and other materials
Structure of bag Single screen (surface filtration structure, pore size of 100 to 800 microns), needle felt cloth (three-dimensional structure of fluffy deep filter, pore size of 1 to 200 microns) and melt blown nonwovens (deep bed filtration structure, pore size of 1 to 100 microns) three, and there are a variety of ~ 800 micron filtration precision to choose from, in order to meet the requirements of different production processes. Acid, high temperature and other characteristics of the bag material can be adapted to different filtered liquid chemical compatibility requirements.

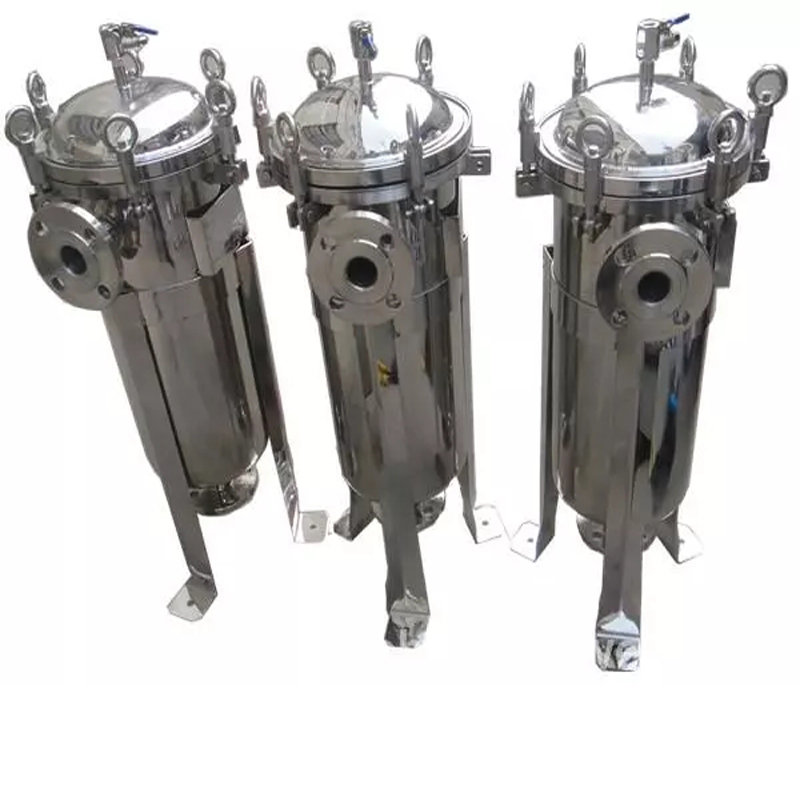

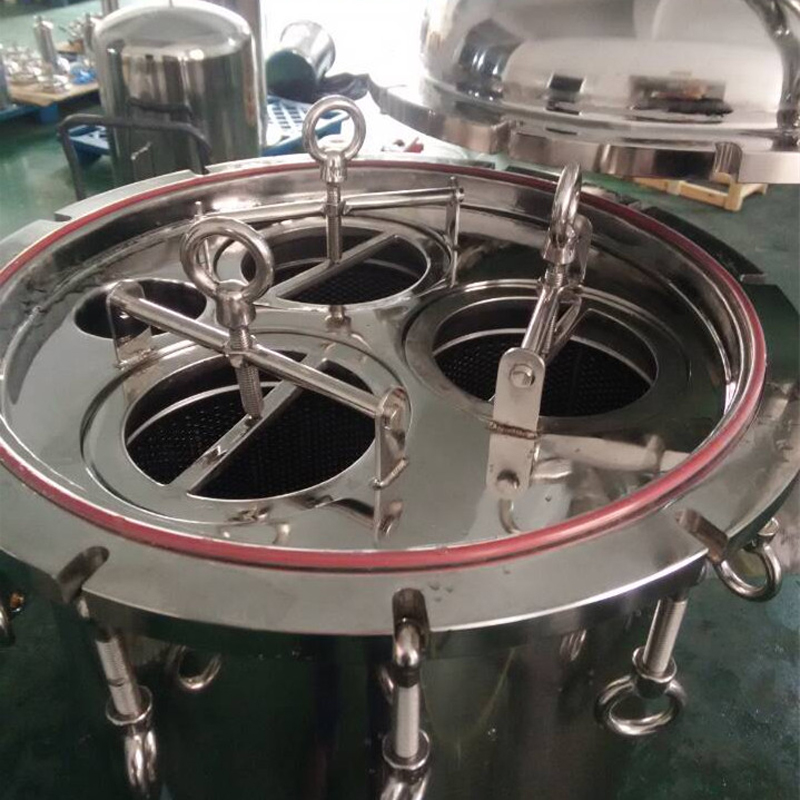

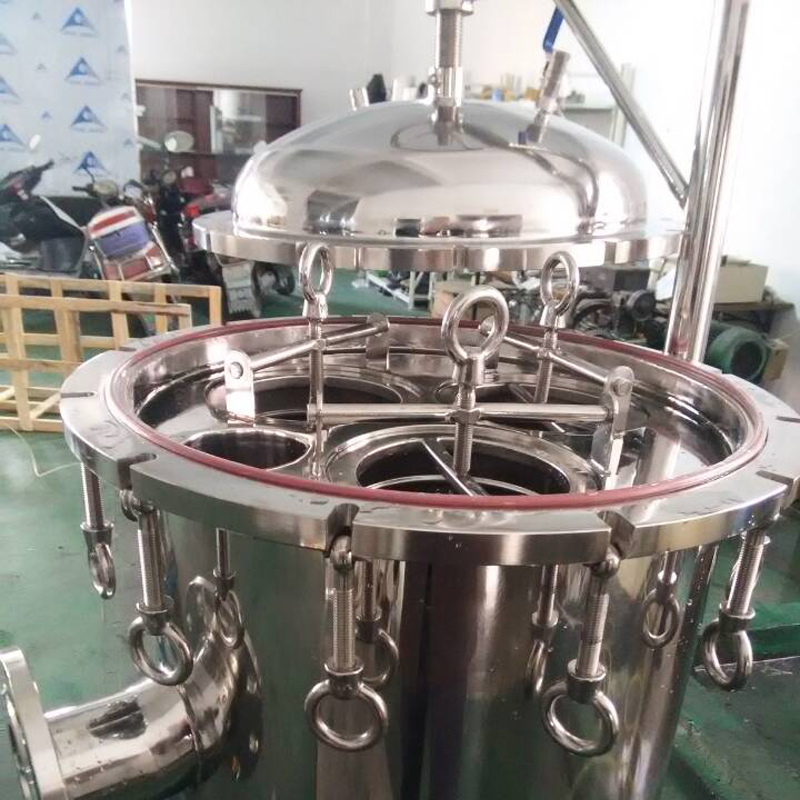

Factory shots:

Factory Certifications:

Main Product Series:
